Configure the VPN Gateway

Once the VPN Gateway is Active, this page walks through configuring the IPsec connection to a remote peer.

Step 1. Open the Connection configuration dialog

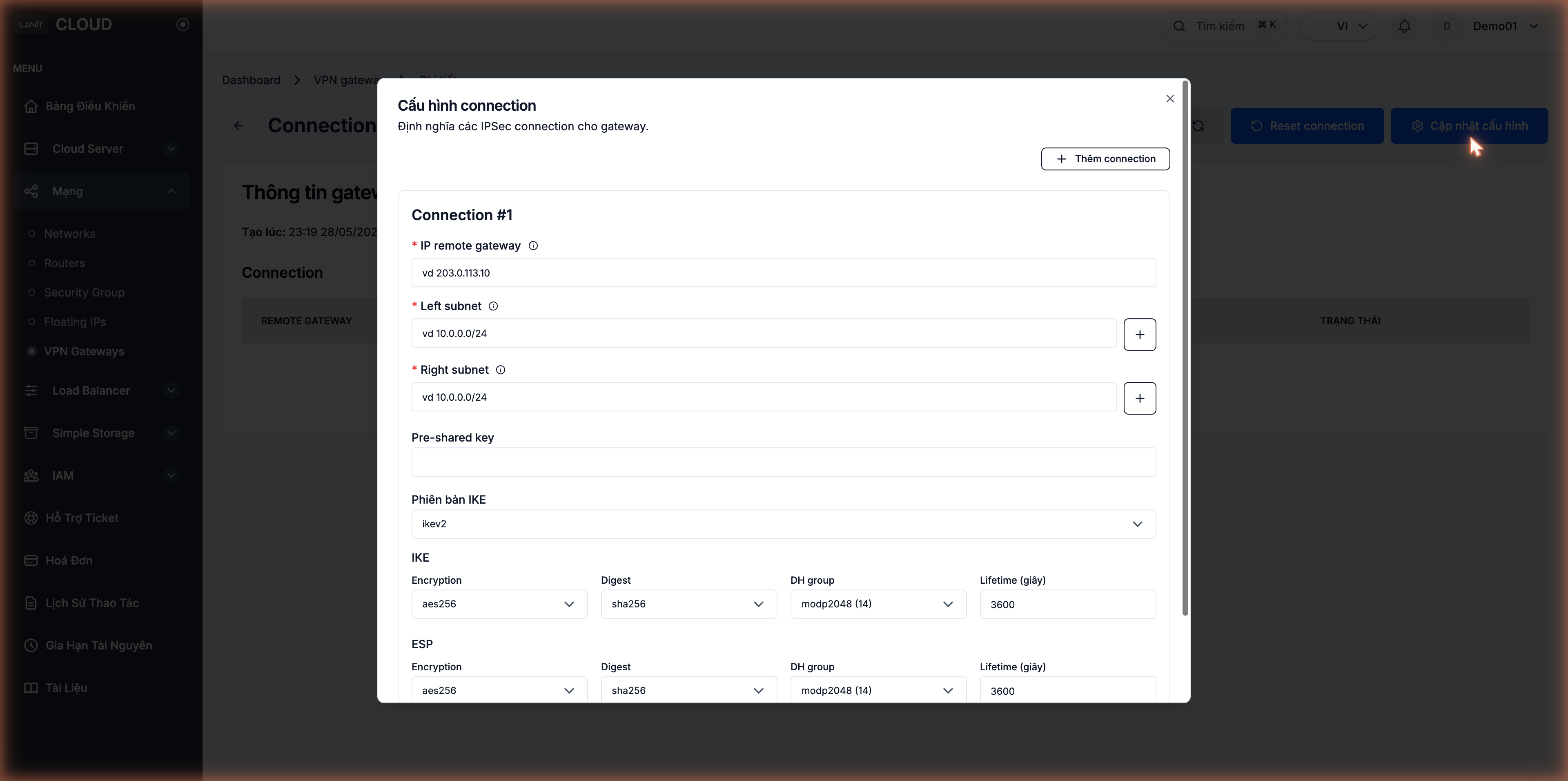

On the VPN Gateway detail page, click Update configuration. The Connection configuration dialog opens — define IPsec connections for the gateway. Each tunnel is a Connection #N. Click + Add connection in the top-right to add another tunnel.

Step 2. Endpoints and subnets

Field	Meaning	Example
IP remote gateway (required)	Public IP of the peer's gateway	203.0.113.10
Left subnet (required)	CIDR on this side (LANIT)	10.0.0.0/24
Right subnet (required)	CIDR on the remote side	192.168.1.0/24
Pre-shared key	PSK shared with the peer	<PSK >= 32 random characters>

Both Left and Right subnet support multiple ranges — click the + button on the right of the field to add another range (e.g. LANIT has two subnets 10.0.1.0/24 and 10.0.2.0/24 going through the same tunnel).

Generate a safe Pre-shared Key

# 32 random characters — sufficient entropy
openssl rand -base64 32

Don't use PSKs built from dictionary words or guessable patterns. Don't reuse PSKs across connections.

Step 3. IKE version

LANIT Cloud supports IKEv2 only — aligned with modern security recommendations and supported by virtually every modern peer.

Step 4. IKE (Phase 1) — Key Exchange

Parameter	Default	Available options
Encryption	aes256	aes128, aes192, aes256, 3des
Digest	sha256	sha1, sha256, sha384, sha512, md5
DH group	modp2048 (14)	modp1024 (2), modp1536 (5), modp2048 (14), modp3072 (15), modp4096 (16), modp6144 (17), modp8192 (18)
Lifetime (seconds)	3600 (1 hour)	Integer

Step 5. ESP (Phase 2) — Data Encryption

Same parameter set as IKE but applied to the actual data packets after the tunnel is up.

Parameter	Default	Available options
Encryption	aes256	aes128, aes192, aes256, 3des
Digest	sha256	sha1, sha256, sha384, sha512, md5
DH group	modp2048 (14)	modp1024 (2) ... modp8192 (18)
Lifetime (seconds)	3600 (1 hour)	Integer

Recommended security settings

Priority	Parameter	Value
Good	Encryption	aes256
Good	Digest	sha256 or higher
Good	DH group	modp2048 (14) or higher
Good	IKE Lifetime	86400 (24 hours) — reduces rekey frequency
Good	ESP Lifetime	28800 (8 hours)
Avoid	Encryption	3des — weak, deprecated
Avoid	Digest	md5, sha1 — collision-broken
Avoid	DH group	modp1024 (2), modp1536 (5) — weak against modern attackers

Step 6. Click Confirm

Once Connection #1 (and any additional Connection #N entries) is complete, click Confirm. The portal saves the configuration and applies it. The tunnel transitions to Connected once the remote peer is also up.

Step 7. Configure the remote peer

The remote (on-premise) side must be configured mirroring the LANIT side:

LANIT field	↔	Peer field	Notes
Gateway Public IP (e.g. 161.248.199.97)	↔	Remote Peer IP	Read it from the gateway detail page
Left subnet 10.0.0.0/24	↔	Remote Subnets	From the peer's perspective, LANIT is the remote
Right subnet 192.168.1.0/24	↔	Local Subnets
Pre-shared key	↔	Pre-shared key	Must be identical
IKEv2	↔	IKE v2	Must match
IKE: aes256/sha256/modp2048/3600	↔	Phase 1: must match all
ESP: aes256/sha256/modp2048/3600	↔	Phase 2: must match all

Example peer configurations

strongSwan (Linux, /etc/ipsec.conf)

conn lanit-cloud
    keyexchange=ikev2
    left=%defaultroute
    leftsubnet=192.168.1.0/24
    right=161.248.199.97
    rightsubnet=10.0.0.0/24
    ike=aes256-sha256-modp2048!
    esp=aes256-sha256-modp2048!
    ikelifetime=24h
    lifetime=8h
    authby=secret
    auto=start

/etc/ipsec.secrets:

192.168.1.10 161.248.199.97 : PSK "<paste-the-same-PSK-here>"

MikroTik RouterOS

/ip ipsec peer add address=161.248.199.97 exchange-mode=ike2 name=lanit secret="<PSK>"
/ip ipsec policy add src-address=192.168.1.0/24 dst-address=10.0.0.0/24 peer=lanit \
    sa-src-address=<router-public-ip> sa-dst-address=161.248.199.97 tunnel=yes
/ip ipsec proposal add name=lanit auth-algorithms=sha256 enc-algorithms=aes-256-cbc \
    pfs-group=modp2048 lifetime=8h

pfSense / OPNsense

Under VPN → IPsec → Tunnels:

• Phase 1: Key Exchange version = IKEv2, Remote Gateway = 161.248.199.97, Encryption = AES-256, Hash = SHA-256, DH Group = 14, Lifetime = 86400.
• Phase 2: Local Network = 192.168.1.0/24, Remote Network = 10.0.0.0/24, Encryption = AES-256, Hash = SHA-256, PFS group = 14, Lifetime = 28800.

Step 8. Routing

The VPN Gateway automatically adds the Right subnet to the route table of any Network attached to a Router. LANIT VMs only need their default route via the Router — no extra configuration required.

The remote side must ensure traffic to the Left subnet (10.0.0.0/24 in the example) goes through the VPN device. If the VPN device is not the default gateway of the remote network, add a static route on remote hosts pointing the Left subnet to the VPN device's internal IP.

To override routing or add a special route, use a Static Route on the Router.

Step 9. Verify the tunnel

On the VPN Gateway detail page, the Connection list shows each tunnel with these columns:

• REMOTE GATEWAY — peer IP.
• RIGHT SUBNET — remote-side subnet.
• LEFT SUBNET — LANIT-side subnet.
• KEY EXCHANGE — IKE version.
• STATUS — Connected once the tunnel is up.

Once both sides are configured and up, the status transitions to Connected. Test:

# From a LANIT VM
ping <internal-IP-on-remote-side>

# From the remote side
ping <internal-IP-of-LANIT-VM>

If you need to forcibly tear down and rebuild the tunnel (after changing the PSK or recovering from issues), click Reset connection at the top-right of the detail page.

Troubleshooting

Symptom	Common cause	Fix
Status never reaches Connected	Wrong PSK, mismatched algorithms, wrong peer IP	Compare every parameter on both sides, especially IKE / ESP / lifetime / DH group
Tunnel up but pings fail	Remote firewall or routing blocks the LANIT subnet	Open the firewall and add a route on the peer
Pings succeed but apps fail	MTU mismatch	Set MTU 1400 on the VM / VPN interface
Tunnel drops every few hours	IKE/ESP lifetimes too short or mismatched	Set IKE lifetime to 86400 and ESP to 28800 on both sides
Low throughput	Weak peer CPU or heavy crypto	Use AES-128 instead of AES-256 if your security policy allows
Config change saved but still broken	Old IKE/ESP session still running with old config	Click Reset connection to rebuild the tunnel

Security

• Long, random PSK (≥ 32 characters) — generate one with openssl rand -base64 32. Don't reuse PSKs across connections.
• IKEv2 + AES-256 + SHA-256 + DH group 14+ — skip 3des, md5, sha1, modp1024 unless an older peer cannot do better.
• Restrict Security Groups for traffic from the remote subnet — a VPN tunnel is no reason to open 0.0.0.0/0 for every port.
• Audit log — check the activity log after every gateway change.
